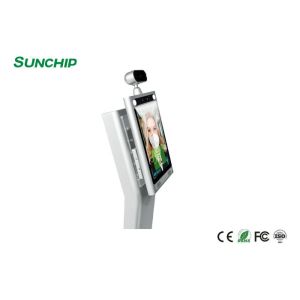

Facial Recognition Infrared Human Body Temperature Detector
AD-08R Model.
✔8 inch Body Temperature detector with facial recognition
✔Android System
✔delivery 5-30 days
✔White balance Automatic, low color temperature, high color
temperature, manual
✔Body temperature Temperature range 30℃~45℃
✔Temperature range 40-75cm
✔Precision 0.3℃ when used indoor
✔Intelligent function Detection Angle Vertical: 90 degrees,
horizontal: 53 degrees
✔Face detection Maximum face detection
Usage Scenarios:
Passes high-precision infrared temperature detection and perfectly
integrates intelligence such as faces, ID cards, etc. Functions
such as access control, time attendance, etc., realize non-contact
rapid detection, registration, and recording of human body
temperature. It is widely used in office areas, hotels, aisles,
office buildings, schools, shopping malls, communities, public
services, and management projects place.
Key Features:
Non-contact automatic body temperature detection, brushing the face
and performing high-precision infrared human temperature collection
at the same time, fast and efficient;
Temperature measurement range 30-45℃ with accuracy ±0.3℃.
Automatic identification of personnel without masks and real-time
warning;
Supports contact-free temperature measurement and real-time early
warning of high temperature fever;
Automatically register and record information, avoid manual
operations, improve efficiency and reduce missing information;
Supports binocular live detection;
Unique face recognition algorithm to accurately recognize faces,
face recognition time < 500ms
Support human motion tracking exposure in strong backlight
environment, support machine vision optical wide dynamic ≥80db;
Rich interface protocols, supporting SDK and HTTP protocols under
multiple platforms such as Windows / Linux;
8-inch ips HD display;
Supports electronic voice broadcast (normal human body temperature
or super high alarm, mask detection reminder, face recognition
verification results)
DESCRIPTION
Facial recognition infrared human body temperature detector can be
used with access gates and attendance for communi-ties, office
buildings, schools, hotels, scenic spots, transporta-tion hubs and
other public service places.
Human Body Temperature DetectorVertical human body Temperature
Measuring Face Recognition access control terminal system,Adopting
the high-performance hardware platform of rk3288, equipped with
industrial grade binocular camera and human face recognition
technology, as well as infrared thermal imaging module. It supports
mask recognition, and other peripheral extensions. It can be
applied to gate channel and access control attendance to achieve
safe and efficient access control of personnel.
| |
| System | CPU | RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764 |
| RAM | 2GB |
| Internal memory | 16GB |
| Operation system | Android 5.1 |
| Display | Panel | 8" |
| Resolution | 800*1280 |
| Contrast ratio | 1000:1 |
| Brightness | 350cd/㎡ |
| Aspect Ratio | 16:10 |
| Network | WiFi | 802.11b/g/n 2.4G |
| Buletooth | Bluetooth 4.1 |
| Interface | USB | OTG data |
| RJ-45 | 10M/100MEthernet |
| |
| Software | living human body detection | 100% identification of real person,Avoid photos or videos |
| dual light multi lattice infrared thermal imaging | accurate recognition temperature warning with data stored in cloud
server |
| Other functions | Wireless mouse | Support |
| Human body detection module | Infrared detection |
| White fill light | White board uniform light supplement |
| Status indicator | Two color LED function indicator |
| MIC | front built-in microphone |
| dual light infrared thermal image detection | Heimann Sensor (Dual-light infrared thermal imaging detection) |
| horn | 2*2W |
| wide dynamic of binocular living | 200W 1080P Front camera |
| OSD | Multilingual OSD in English/German/Italian/Japanese/Korean |
| Reliability | working temperature | -10℃～+60℃ |
| working humidity | 20%～95% Non condensing |
| Storage temperature | -0℃～+80℃ |
| Overall power consumption | below 18W |
| Protection level | IP54 |
| ESD | Positive and negative 4K contact discharge/8Kv air discharge |
| surge | Support |
| harmonic | Support |
Non-contact
No need to touch the equipment, it can be identified by entering
the range, convenient for hygiene
Diverse application
Public cloud deployment, private deployment, LAN use, stand-alone
use
Various expansion
Supporting expansion of various peripheral devices
NON-CONTACT TEMPERATURE MEASUREMENT SAFER
Built-in infrared non-touch temperature measurement module. When
people is performing face recognition, it can measure their
forehead and facial skin temperature at the same time.
In a non-contact, accurate, reliable, efficient, and non-perceived
way, the terminal will issue an unusual warning to those whose body
temperature exceeds normal values, and show their temperature.
DISTANCE 30-80CM BODY TEMPERATURE MEASUREMENT
Temperature measurement values can be set in backstage. When
personnel temperature are detected higher than the set value, alarm
will be triggered, meanwhile the gate would not open. When
personnel are identified to wear no masks, alarm will be triggered
as well, and gate would not open. Support voice broadcast during
measuring.
- Binocular camera supportslive detection
- Unique face recognition algorithm to accurately recognize face
- 2 Mega Pixel Camera
- super large aperture, wide dynamic image sensor, clear collection
of every detail.
- Automatic Fill Light: Industrial class wide dynamic binocular camera, infrared and led
dual compensation at night are adopted.
Customization is supported! Welcome to contact me for more
information.
Look forward to our cooperation~
