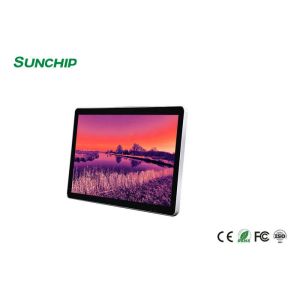

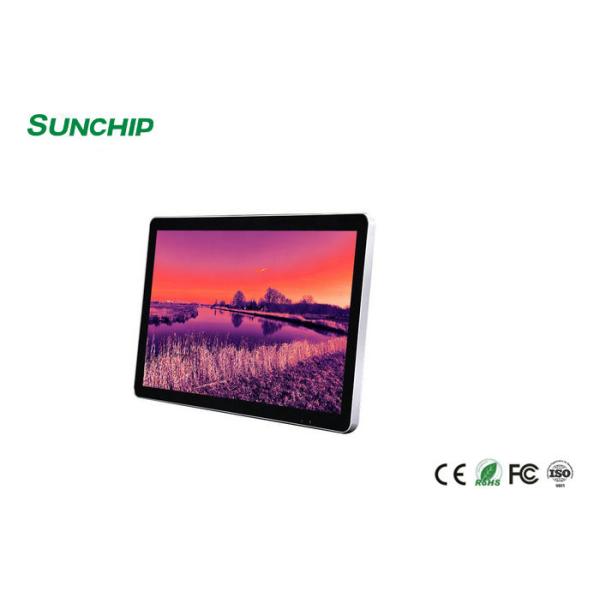

New 55 inch wall mounted LCD advertising display 1080P LCD WIFI
digital signage with thin frame
Wall Mounted Advertising Display from SUNCHIP ADW
Overview
RK3288 Android integrated board, using Rockchip RK3288 quad-core
chip solution, support Android5.1 system. Supports the decoding of
the popular audio & video formats and images. Support EDP@4K, dual
8-bit LVDS interface 1920*1080, can drive 7" to 82" display.
Support 4K video playing. The multi interface makes the product in
common use and is widely used in intelligent control fields such as
advertising machines, all-in-one PC, security, industrial and so
on.
HIGHLIGHTS
A. High performance: The RK3288 uses the Quad-core A17 solution and
is one of the most powerful quad-core chips on the market. Compared
with the common single-core, dual-core and quad-core solutions in
the market, it has a qualitative leap in performance, can play
high-definition video in various formats, and can process the
complex interactive operations.
B. High stability: RK3288 Android integrated board, adds their own
unique technology in the hardware & software to ensure the
stability of the product to make sure the device 7*24 hours
unattended.
C. High integration: RK3288 Android integrated board integrates
Ethernet, WIFI, Bluetooth, 4G, power amplifier, SD card, backlight
power supply and other functions, greatly simplifying the design of
the device. The ultra-thin motherboard makes the design of the
device more beautiful.
PRODUCTS SPECIFICATIONS
| Model No.: AD-55''-RK3288 | RK3288 Quad-core Android all-in-one advertising machine (55'' wall mounted advertising display ) |
|
| Hardware Spec |
| System | CPU&GPU | RK3288 quad-core Cortex-A17@1.8G GPU Mali T764 |
| RAM | 2GB/4GB (optional) |
| Memory | 8GB/16GB/32GB(optional) |
| Operating system | Android 5.1/ 6.0 |
| Interactive mode | infrared touch | Optional |
| ten-points capacitive touch |
| No-touch/infrared remote control |
| Display | LCD Screen | 55'' |
| Resolution | 1920*1080 |
| Contrast | 1400:1 |
| Screen brightness | 450 cd/m2 |
| Screen proportion | 16:9 |
| Network | WiFi | 802.11 b/g/n_2.4G ( support 5G optional) |
| Mobile network | Support 4G(optional) |
| Bluetooth | Bluetooth 4.0 |
| Ethernet | 10M/100M/1000M Ethernet |
| Interface |
| Interface | USB interface*2 | Support USB host*2 |
| USB_OTG | USB_OTG*1 |
| AC | AC 100V-240V (50HZ-60HZ) |
| TF card | Maximum support 128GB |
| RJ45 | 10/100/1000M Ethernet port |
| Headset | 3.5mm stereo headphone output |
| Speaker output | Support 8 ohm 3W speaker dual channel output interface |
| Buttons/Keys | Buttons/Keys | defaulted none |
| Media Parameter |
| Media Playback | Video format | MPEG-1,MPEG-2,MPEG-4,H.264,H.265,VC1,VP8,4K VP9,4K 10bits
H265/H264,HDR10,HLG HDR,Maximum support 3840x2160 |
| Audio format | MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format |
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 |
| Image Format | JPG,BMP,PNG |
| System Management |
| System Management | APK install | APK installer |
| Root permission | Original Android system, open root permissions, product
customization development |
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours
unattended |
| OTA upgrade | Support OTA remote upgrade |
| Accessories |
| Accessories | Power Adapter | Standard |
| User's Guide | Standard |
| Warranty Card | Standard |
| Size(unit:mm) |
| Product size(L*W*H) | 796*459.92*1903.8 |
| colour box size(L*W*H) | |
| Carton size(PCS/CTN)(L*W*H) | |
| Others Parameters |
| Camera | the front camera 200W/500W(Optional) |
| Recording | Support high-quality recording function (optional) |
| OSD Language | Multi-language OSD Operation |
PRODUCT SCENARIOS
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display,
Stretched LCD Display, Open Frame Display and Android Media Player
Advertising Box.
